500GH

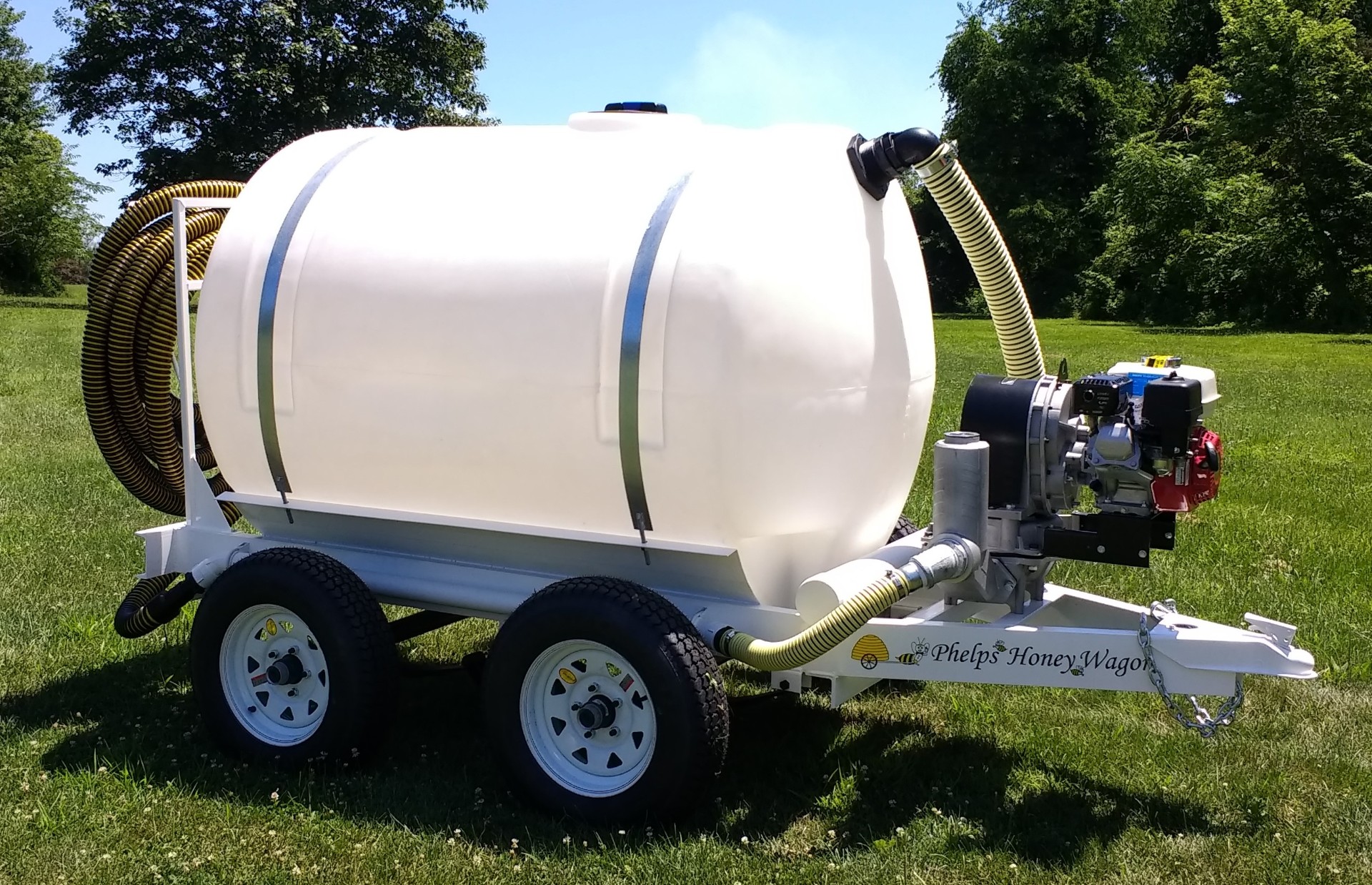

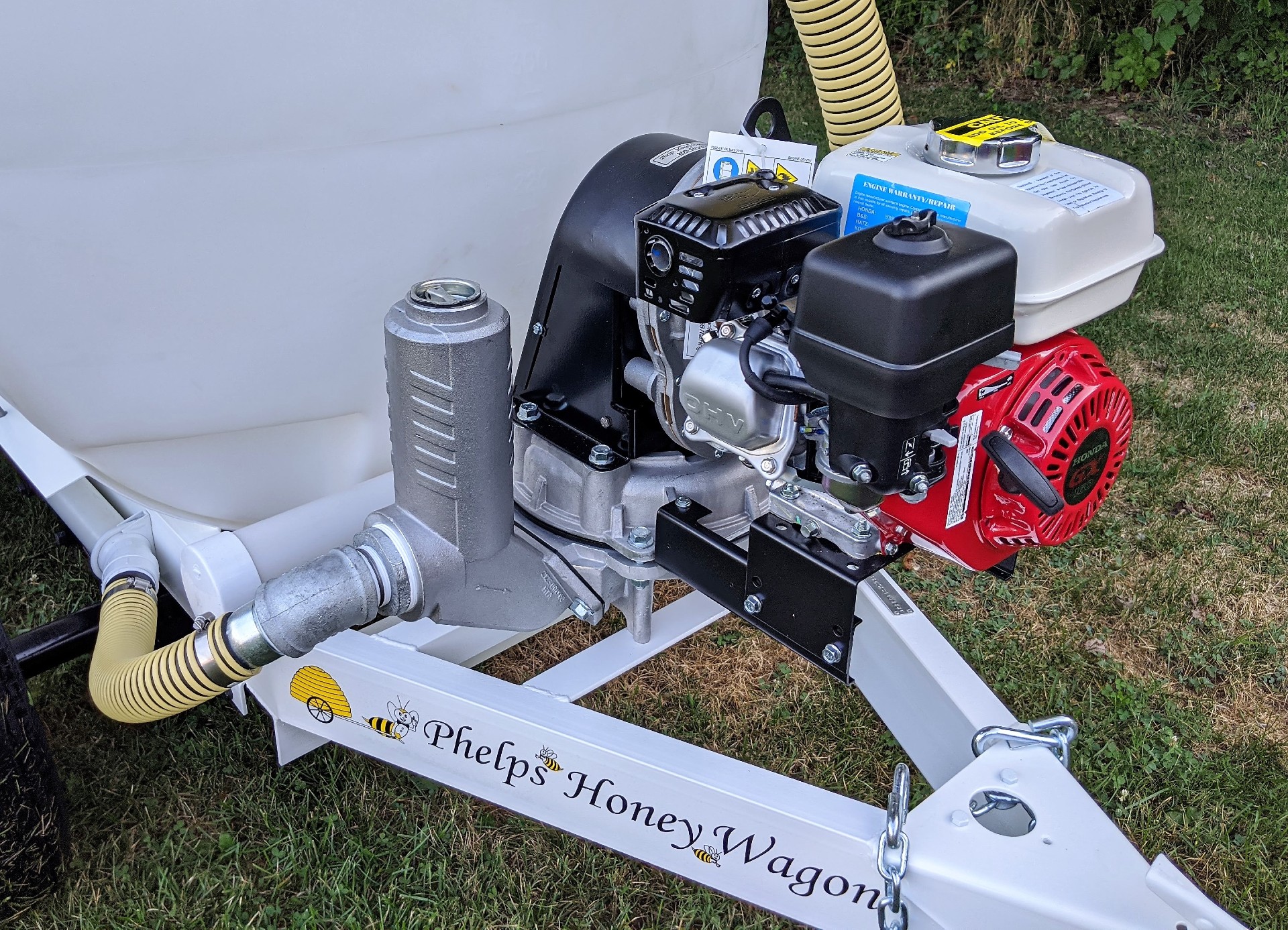

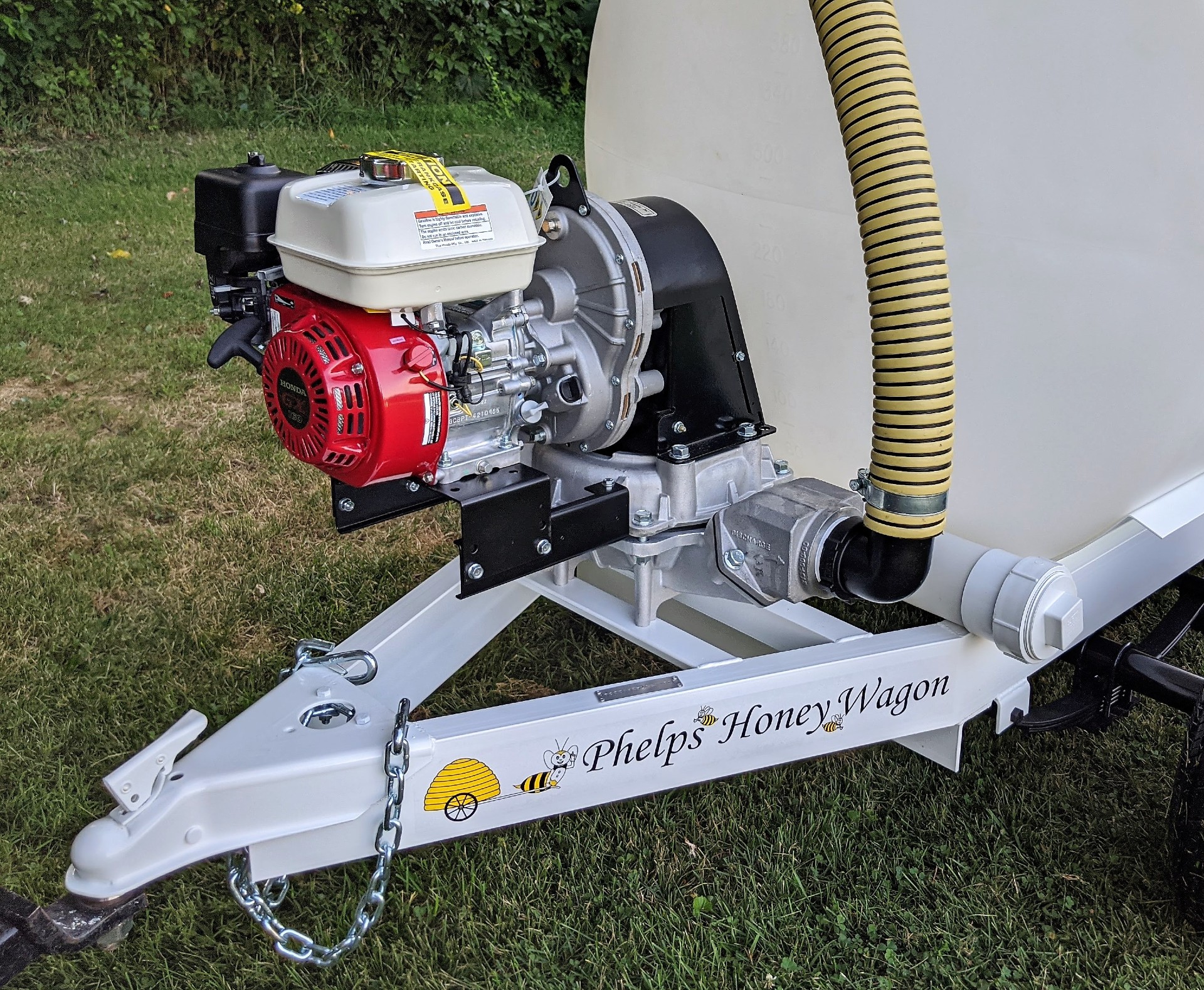

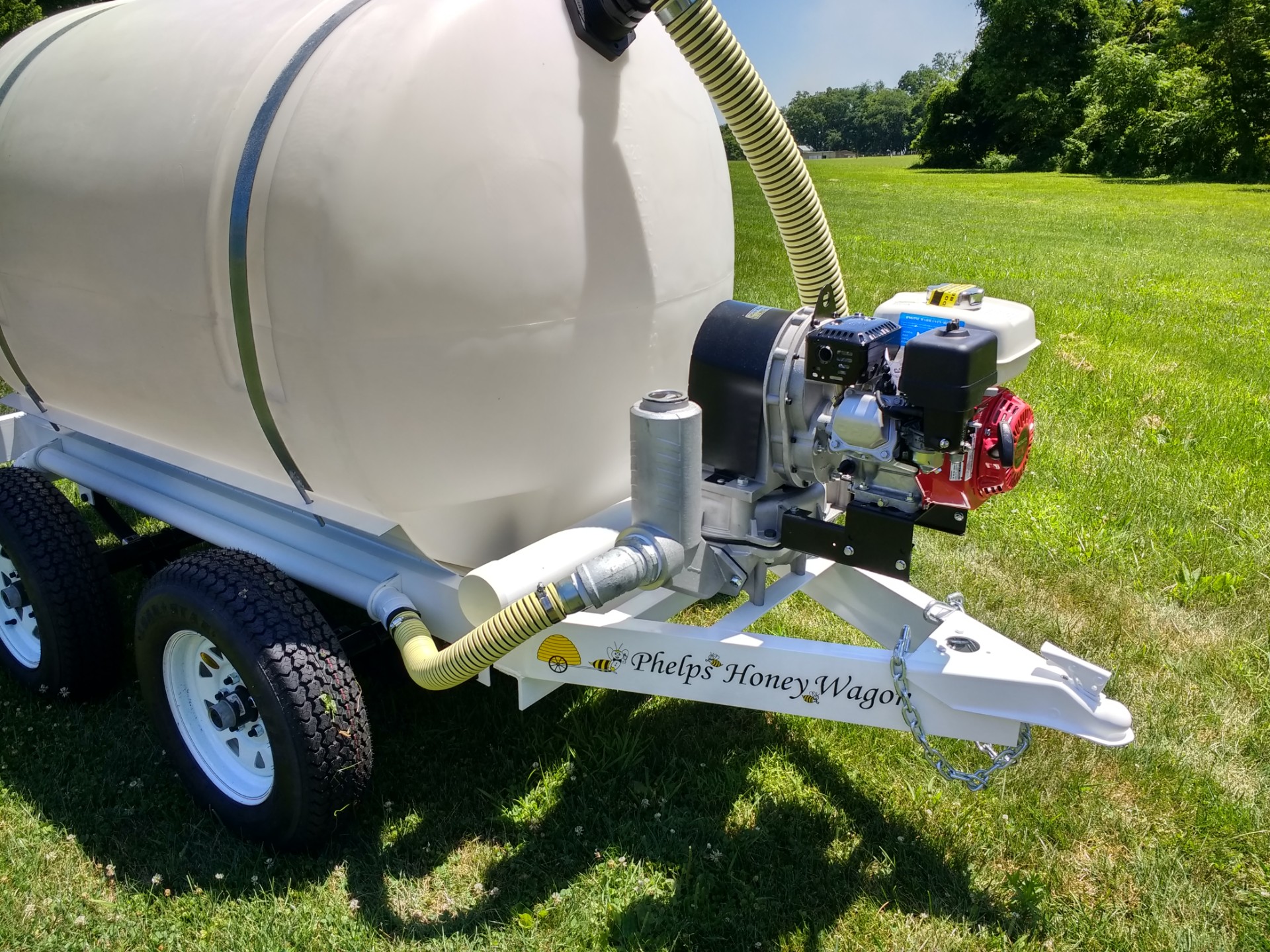

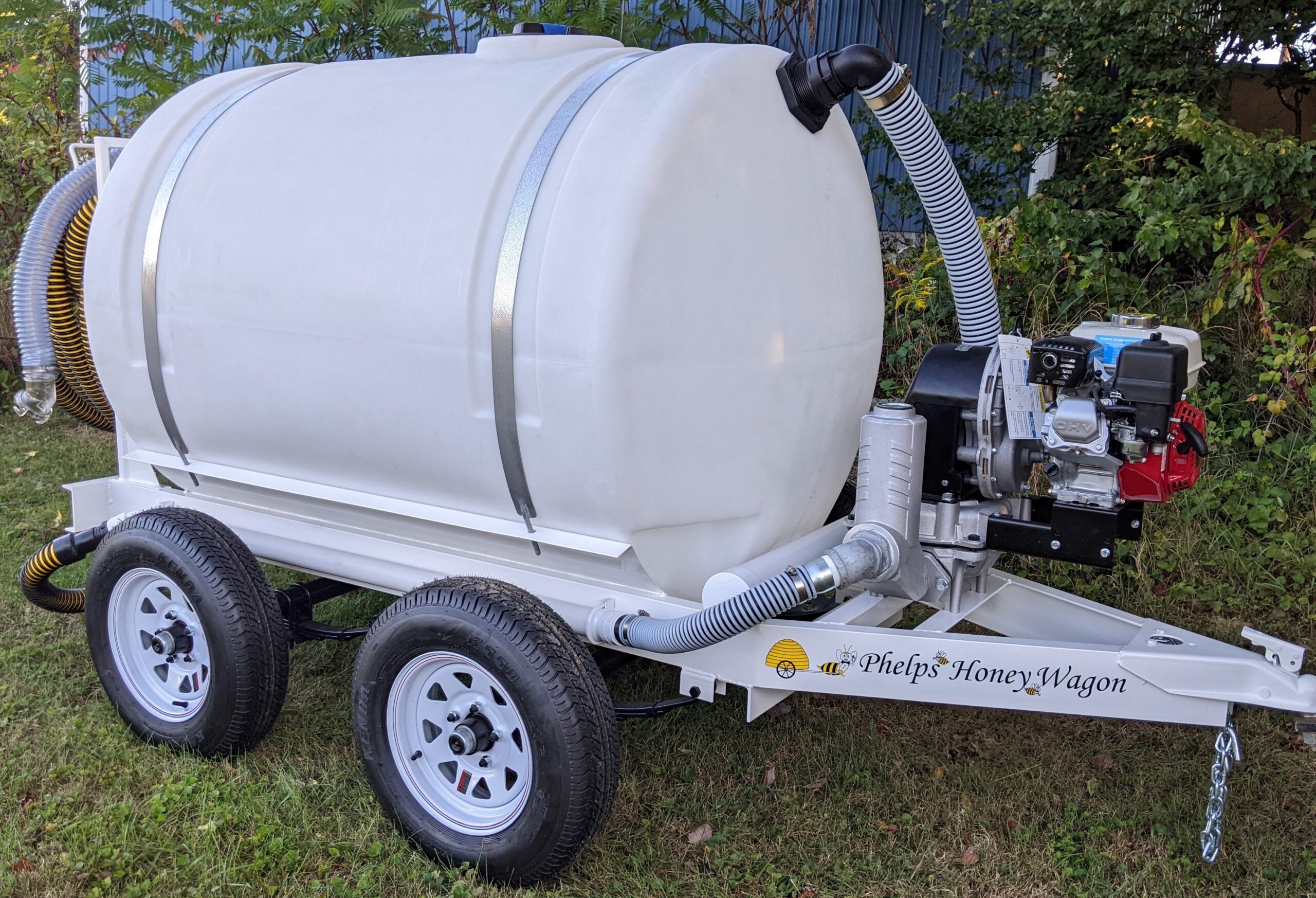

This unit has a 500 gallon plastic tank, 50 ft. of 2″ Hi-Vac suction hose, and a RV hose adapter all included. The pump is a 3” industrial diaphragm sewage pump powered by a GX160 Honda engine. It will pump 50-60 gallons per minute with a lift of 25 ft. The wagon has a tandem axle with 13″ tires.
Approximate weight 1090 lbs.
Specifications
| Pump | Cast aluminum pump to resist corrosion 12 in. Thermoplastic Diaphragm 60 gallons per minute Will pump a 25 ft. head Neoprene Flapper Valves Self-priming |
| Motor | GX160 Honda engine |
| Tank | 500 Gallon Capacity Tank Polyethylene plastic tank for long life with approx. 1/4 in. walls Dimensions: 48 in. diameter | 75 in. length Translucent tank to show content level Tank is supported by a steel pan on a 5 in. steel channel frame Large top lid for easy interior hose down |
| Discharge | Gravity drain with 3 in. rear discharge gate valve and cap |
| Adapters | RV Hose Adapter, fits all RV’s |
| Hose | 50 ft. of 2 in. Hi Vac hose, very flexible, tough, lightweight and non-kinking |
| Tongue | 2 in. ball coupler |
| Axle | Tandem axle – 3500 lbs. rating per axle |
| Tires | 175/80-13″ tires |
| Weight | Approx. 1090 lbs |
| Warranty | The tank and trailer have a two year limited warranty. The diaphragm pump has a two year warranty, except for wearable parts The hoses and adapters have a 60 day warranty. |
