300E

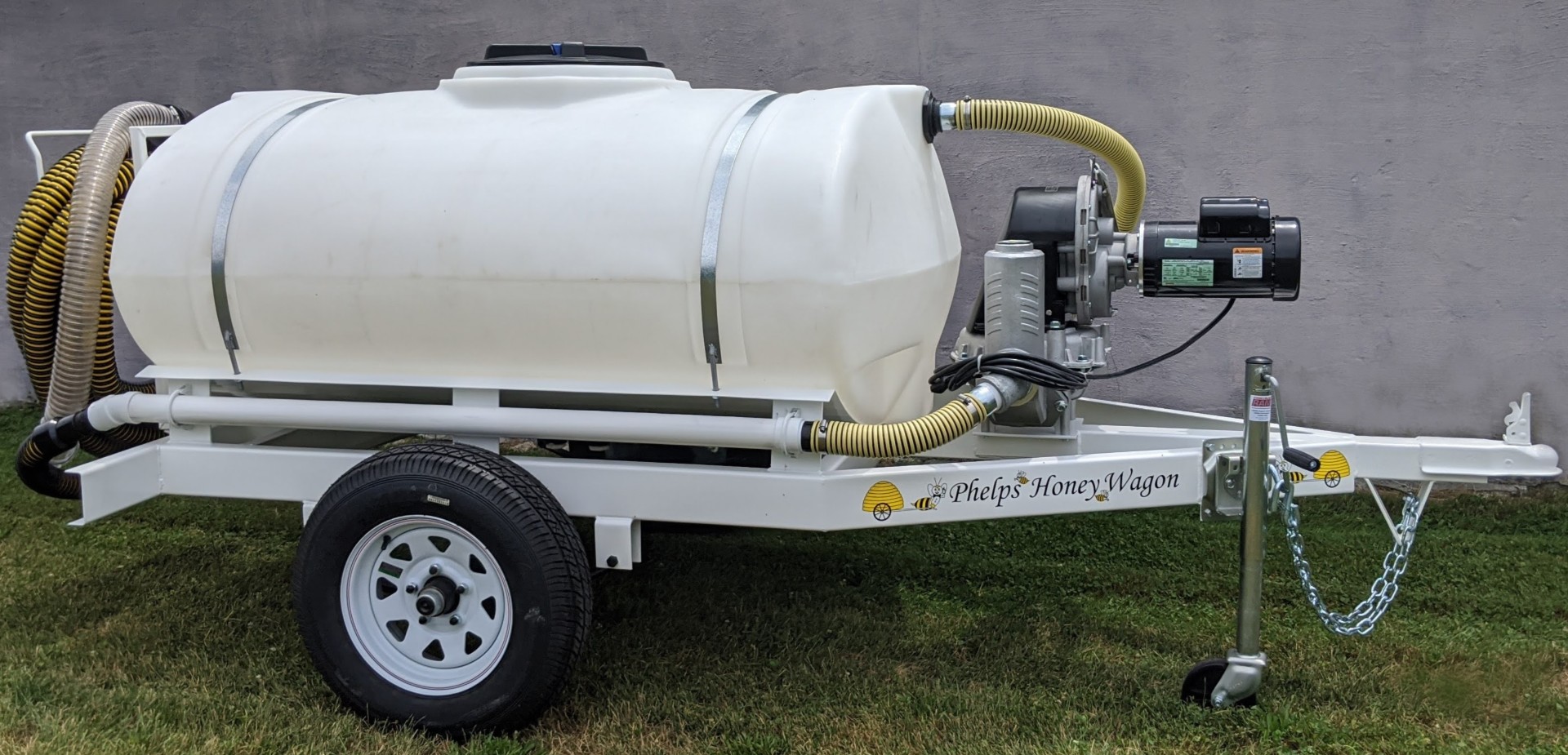

This is an Electric Diaphragm Sewage Pump with 50 ft. of 2″ Hi-Vac Hose, 20 ft power cord, and View Flo RV Adapter. It will pump 40-50 gallons per minute with a 20′ lift and handle any object up to 2″ in diameter. The wagon has a single axle and a 300-gallon plastic tank.

Approximate weight 840 lbs.

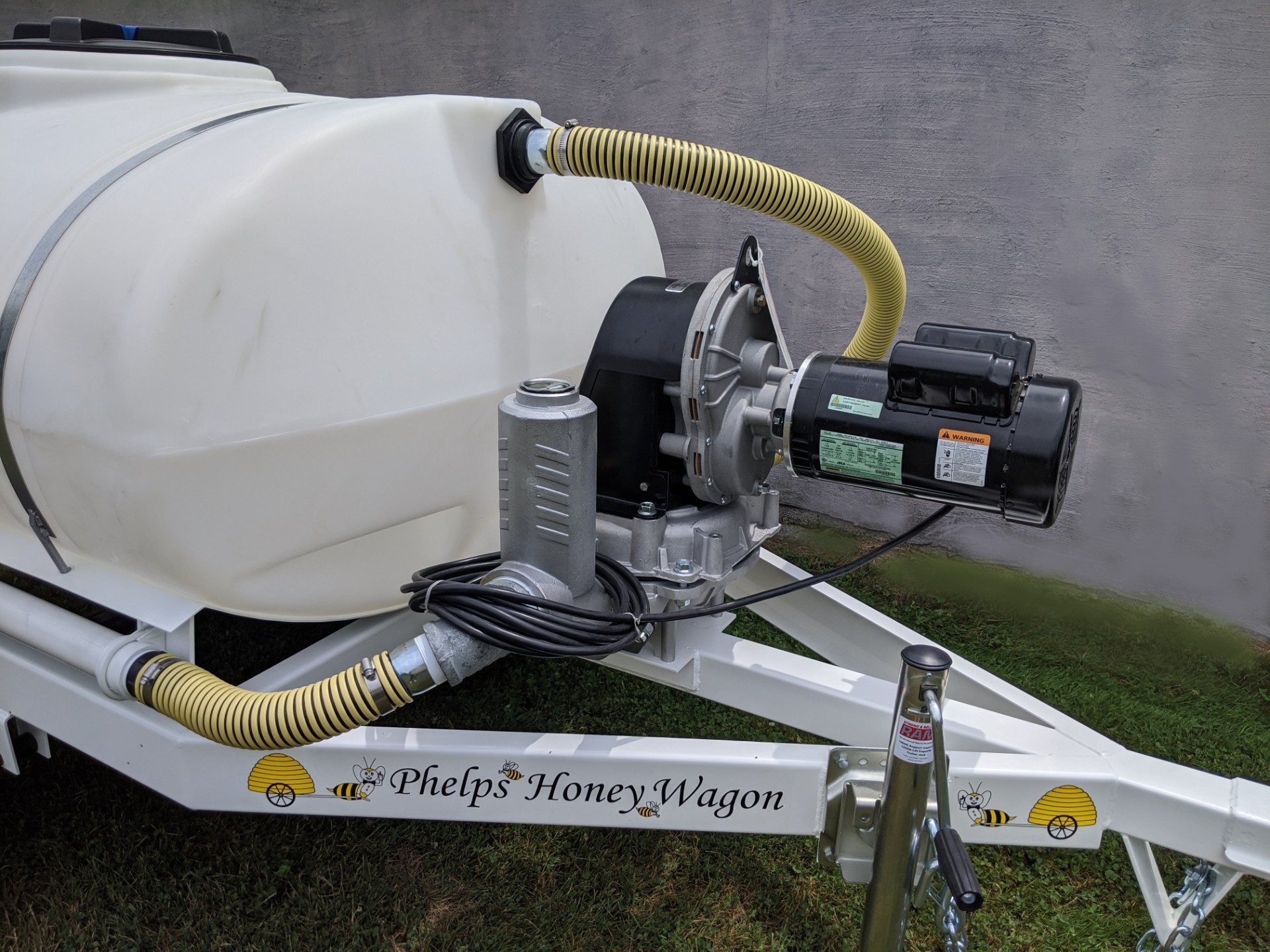

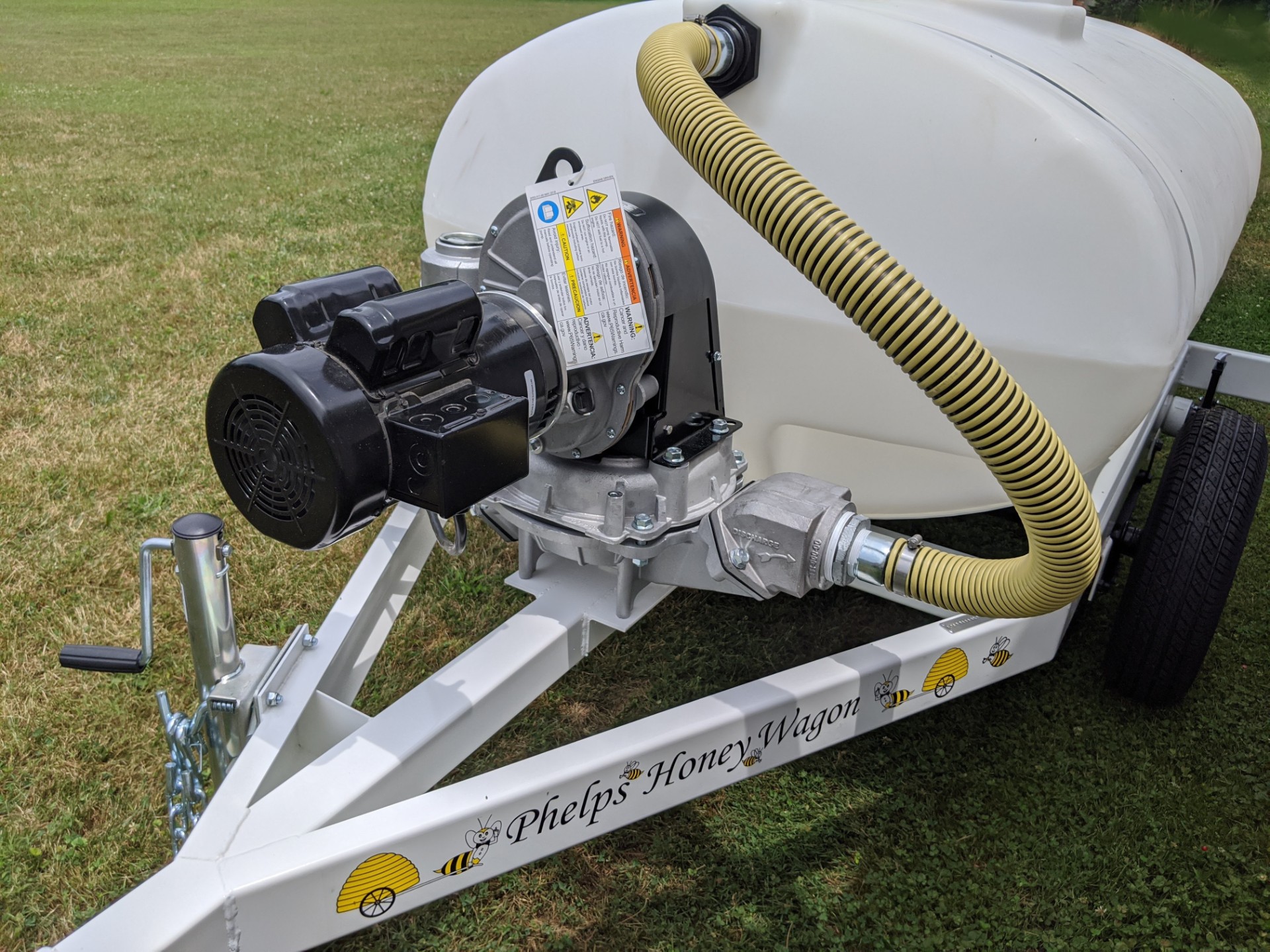

Close-up view of the Electric Diaphragm pump on a 300 gallon wagon.

Specifications


PumpCast aluminum pump to resist corrosion
12 in. Thermoplastic Diaphragm
50 gallons per minute
Will pump a 25 ft. head
Neoprene Flapper Valves
Self-priming
Motor1.5 H.P. single phase, 115/230-volt electric motor with manual reset overload
Weatherproof on/off switch
20 foot 115 VAC power cord
Tank300 Gallon Capacity Tank
Polyethylene elliptical plastic tank for long life with approx. 1/4 in. walls
Dimensions: 48 in. width | 32 in. height | 70 in. length
Translucent tank to show content level
Tank is supported by a steel pan on a 5 in. steel channel frame
Large top lid for easy interior hose down
DischargeGravity drain with 3 in. rear discharge gate valve and cap
AdaptersRV Hose Adapter, fits all RV's

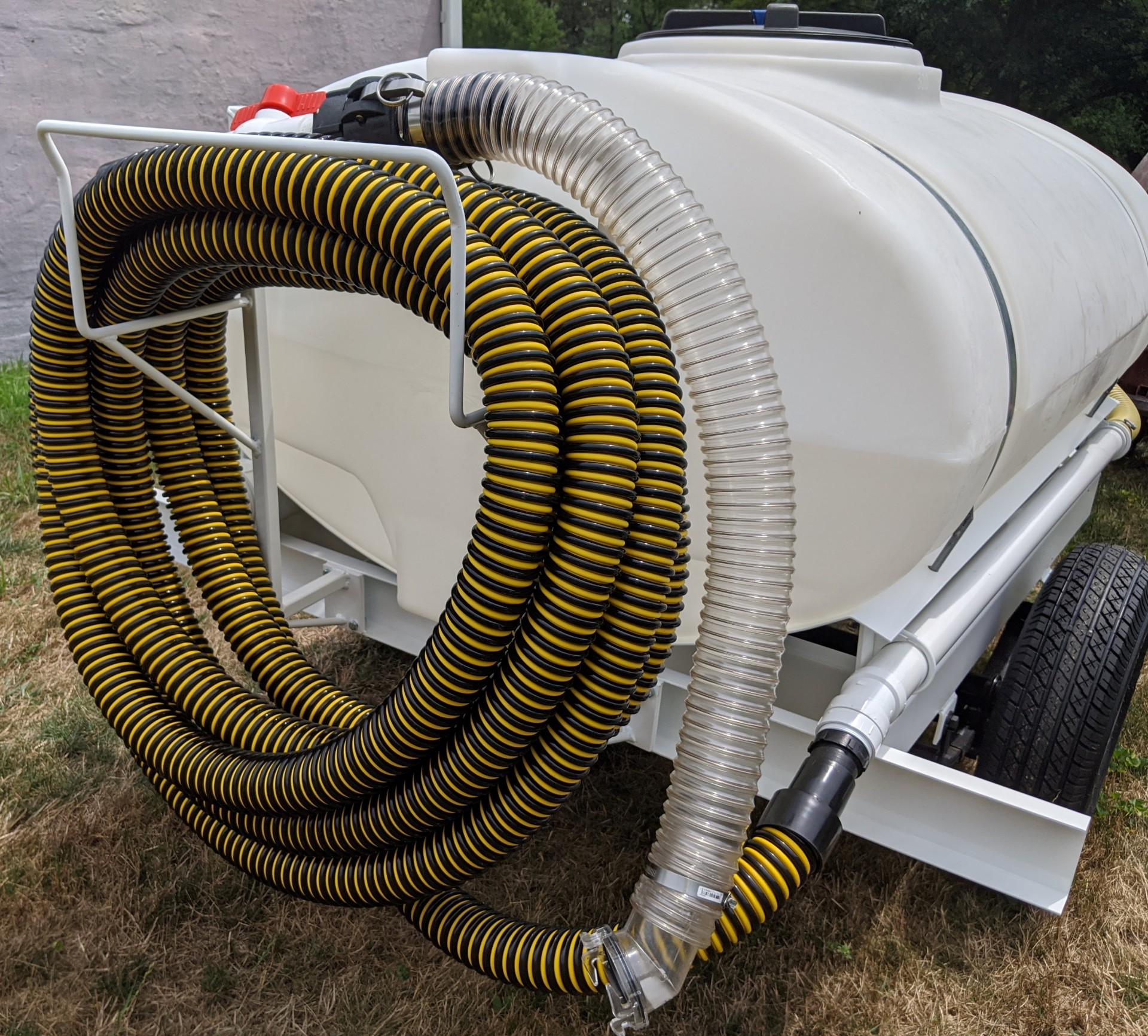

Hose50 ft. of 2 in. Hi Vac hose, very flexible, tough, lightweight and non-kinking
Tongue2 in. ball coupler
Side Wind Jack with Wheel (800 lbs. maximum)
AxleSingle axle - 3500 lbs. rating
Tires175/80-13" tires
WeightApprox. 840 lbs
WarrantyOne year warranty on trailer and tank
One year warranty on pump and motor, except for wearable parts
